Plant Design Software

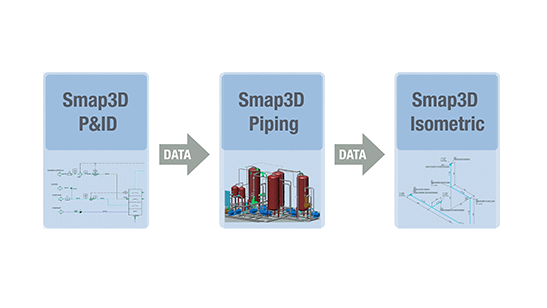

SFDesign is proud to be the Australian reseller for Smap3D. Smap3D Plant Design is the solution package for increasing your efficiency in plant design and engineering. Smap3D Plant Design is an integrated software solution for 2D/3D plant and piping design that can implement an optimal process chain in plant design:
Businesses Using Smap3D
Product Range
The building blocks for an integrated process
Smap3D P&ID
+ For 2D flow diagrams/P&ID schematics
+ Can be used as a stand-alone independent of the CAD system
Smap3D Piping
+ For automated 3D piping design
+ Includes Smap3D standard part libraries and the Smap3D PartFinder, which enables instant use of Smap3D Piping software

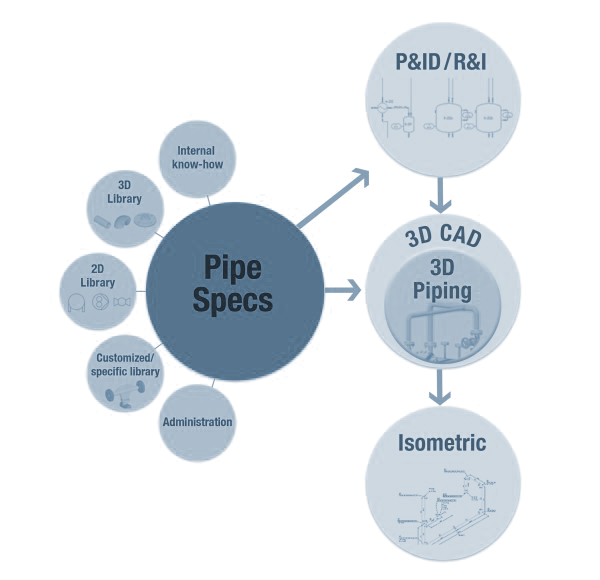

+ Key feature is the use of pipe classes: centralized and unique, company and project-specific
+ Substantially increases process reliability
Smap3D Isometric
+ For isometric drawings
+ 100% customizable via ISOGEN I-Configure
+ Output in formats such as: DXF, DFT, SLDDRW, DGN or PCF
Smap3D ScanToCAD
+ Export of standard geometries from the point cloud into the 3D CAD target system
+ Significant reduction of the data volume through a targeted choice
+ Support of all major scanner formats and types
Smap3D Steel
+ Easy placing of profiles, optionally along sketch lines or from point to point with several offset options
+ Extensive function library for typical steel connections
+ Self-learning database for individual connection variants
+ Database with thousands of screws, nuts and washers (no toolbox required)
+ more!
Smap3D can be used with SolidWorks & SolidEdge
Get Free Live Demo
